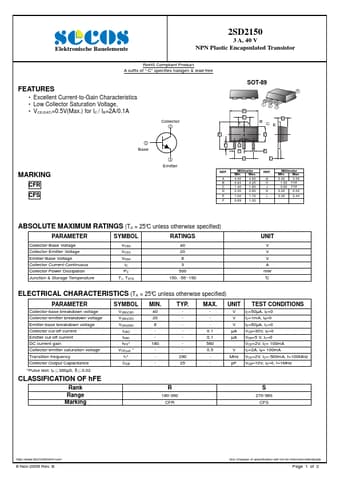

* Excellent Current-to-Gain Characteristics Low Collector Saturation Voltage, VCE(SAT)=0.5V(Max.) for IC / IB=2A/0.1A Collector 2 MARKING CFR CFS 1 Base 3 Emitter SOT-89 4 A E B F G H J 123 C BCE D K L REF. A B C D E F Millimeter Min. Max. 4.40 3.94 4.60 4.25 1.40 1.60 2.30 2.60 1.50
2SD2150
SeCoS
308.29 KB
Npn transistor.
Elektronische Bauelemente
2SD2150
3 A, 40 V NPN Plastic Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-fre.
