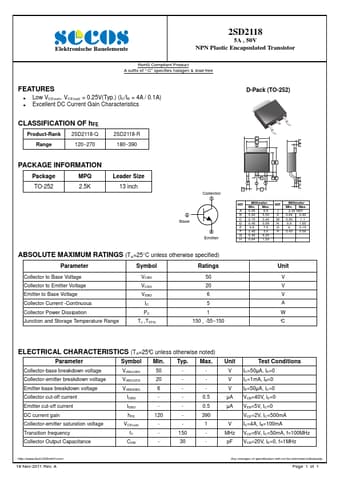

* Low VCE(sat). VCE(sat) = 0.25V(Typ.) (IC/IB = 4A / 0.1A) Excellent DC Current Gain Characteristics D-Pack (TO-252) CLASSIFICATION OF hFE Product-Rank 2SD2118-Q Range 120~270 2SD2118-R 180~390 A BC D PACKAGE INFORMATION Package MPQ TO-252 2.5K Leader Size 13 inch Collector 2 1 Base 3 E
2SD2118
SeCoS
71.42 KB
Npn transistor.
Elektronische Bauelemente
2SD2118
5A , 50V NPN Plastic Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free.
