BCP1213 - Epitaxial Planar Transistor

Datasheet Summary

Features

  • The BCP1213 www. DataSheet4U. net is designed for using in power amplifier.

📥 Download Datasheet

Datasheet preview – BCP1213

Datasheet Details

Part number BCP1213
Manufacturer SeCoS
File Size 608.82 KB
Description Epitaxial Planar Transistor
Datasheet download datasheet BCP1213 Datasheet
Additional preview pages of the BCP1213 datasheet.

📁 Similar Datasheet

  • BCP120C - HIGH EFFICIENCY HETEROJUNCTION POWER FET (BEREX)
  • BCP020C-70 - HIGH EFFICIENCY HETEROJUNCTION POWER FET (BeRex)
  • BCP030C-70 - HIGH EFFICIENCY HETEROJUNCTION POWER FET (BEREX)
  • BCP28 - PNP Silicon Darlington Transistors (Infineon)
  • BCP29 - NPN Silicon Darlington Transistors (Infineon)
  • BCP48 - PNP Silicon Darlington Transistors (Infineon)
  • BCP49 - NPN Silicon Darlington Transistors (Infineon)
  • BCP51 - PNP medium power transistors (NXP)
  • BCP51 - PNP Silicon AF Transistors (Infineon Technologies AG)
  • BCP51 - 1A PNP medium power transistors (nexperia)
Other Datasheets by SeCoS
  • BCP156 - Planar High Performance Transistor
  • BCP157 - PNP Epitaxial Planar Transistor
  • BCP1616A - NPN Epitaxial Planar Transistor
  • BCP1766 - NPN Epitaxial Planar Transistor
  • BCP1898 - NPN Epitaxial Planar Transistor
  • BCP194 - Planar Medium Power Transistor
  • BCP195 - Medium Power Transistor
  • BCP2098 - Epitaxial Planar Transistor

Full PDF Text Transcription

Click to expand full text

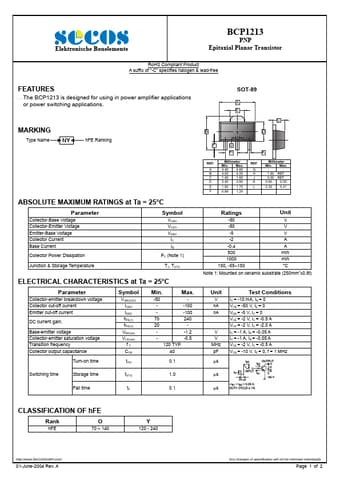

BCP1213 Elektronische Bauelemente PNP Epitaxial Planar Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES The BCP1213 www.DataSheet4U.net is designed for using in power amplifier applications or power switching applications. SOT-89 A E C MARKING Type Name B D F G H K REF. G H J K L NY hFE Ranking REF. A B C D E F Millimeter J Min. Max. 4.40 4.60 4.05 4.25 1.40 1.60 2.40 2.60 1.50 1.70 0.89 1.20 L Millimeter Min. Max. 1.50 REF. 3.00 REF. 0.40 0.52 0.35 0.41 ABSOLUTE MAXIMUM RATINGS at Ta = 25°C Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Junction & Storage Temperature Symbol VCBO VCEO VEBO IC IB PC (Note 1) TJ, TSTG Ratings -50 -50 -5 -2 -0.
