BCP157 - PNP Epitaxial Planar Transistor

Datasheet Summary

Features

-60Volt VCEO.
3 Amp continuous current.
Low saturation voltage.

SeCoS

📥 Download Datasheet

Datasheet Details

Part number	BCP157
Manufacturer	SeCoS
File Size	142.05 KB
Description	PNP Epitaxial Planar Transistor
Datasheet	BCP157 Datasheet

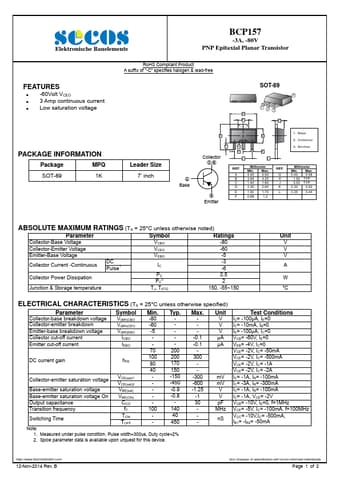

Additional preview pages of the BCP157 datasheet.
