BCP1616A - NPN Epitaxial Planar Transistor

Datasheet Summary

Features

  • Low Collector Saturation Voltage High Break Down Voltage High Total Power Dissipation.

📥 Download Datasheet

Datasheet preview – BCP1616A

Datasheet Details

Part number BCP1616A
Manufacturer SeCoS
File Size 332.42 KB
Description NPN Epitaxial Planar Transistor
Datasheet download datasheet BCP1616A Datasheet
Additional preview pages of the BCP1616A datasheet.

📁 Similar Datasheet

  • BCP120C - HIGH EFFICIENCY HETEROJUNCTION POWER FET (BEREX)
  • BCP020C-70 - HIGH EFFICIENCY HETEROJUNCTION POWER FET (BeRex)
  • BCP030C-70 - HIGH EFFICIENCY HETEROJUNCTION POWER FET (BEREX)
  • BCP28 - PNP Silicon Darlington Transistors (Infineon)
  • BCP29 - NPN Silicon Darlington Transistors (Infineon)
  • BCP48 - PNP Silicon Darlington Transistors (Infineon)
  • BCP49 - NPN Silicon Darlington Transistors (Infineon)
  • BCP51 - PNP medium power transistors (NXP)
  • BCP51 - PNP Silicon AF Transistors (Infineon Technologies AG)
  • BCP51 - 1A PNP medium power transistors (nexperia)
Other Datasheets by SeCoS
  • BCP1213 - Epitaxial Planar Transistor
  • BCP156 - Planar High Performance Transistor
  • BCP157 - PNP Epitaxial Planar Transistor
  • BCP1766 - NPN Epitaxial Planar Transistor
  • BCP1898 - NPN Epitaxial Planar Transistor
  • BCP194 - Planar Medium Power Transistor
  • BCP195 - Medium Power Transistor
  • BCP2098 - Epitaxial Planar Transistor

Full PDF Text Transcription

Click to expand full text

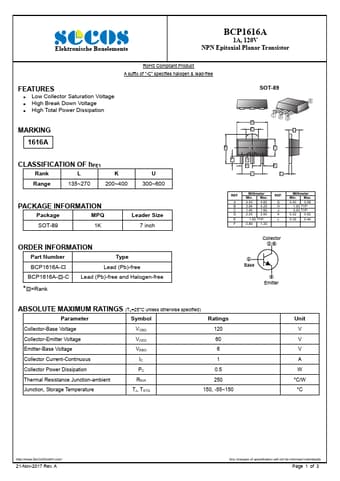

Elektronische Bauelemente BCP1616A 1A, 120V P Epitaxial Planar Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES Low Collector Saturation Voltage High Break Down Voltage High Total Power Dissipation MARKING 1616A CLASSIFICATION OF hFE1 Rank L K Range 135~270 200~400 U 300~600 PACKAGE INFORMATION Package MPQ SOT-89 1K Leader Size 7 inch ORDER INFORMATION Part Number Type BCP1616A- Lead (Pb)-free BCP1616A- -C Lead (Pb)-free and Halogen-free * =Rank SOT-89 123 A EC 4 B F G H J D K L REF. A B C D E F Millimeter Min. Max. 4.40 3.94 1.40 4.60 4.25 1.60 2.25 2.60 1.55 TYP. 0.89 1.20 REF. G H J K L Millimeter Min. Max. 0.40 0.58 1.50 TYP 3.00 TYP 0.32 0.52 0.35 0.
