MBR10100F, MBR1040F Schottky Barrier Rectifier

MBR10100F Description

Elektronische Bauelemente MBR1040F~MBR10200F Voltage 40V~ 200V 10Amp Schottky Barrier Rectifiers RoHS Compliant Product A suffix of “-C” specifies h.

MBR10100F Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 Flame Retardant Epoxy Molding Compound Metal Silicon Junction, Majority Carrier Conduction Low Power Loss, High Efficiency High current capability For Use In Low Voltage, High Frequency Inverters Free Wheeling, and Polarli

MBR10100F Applications

* MECHANICAL DATA Case: ITO-220J Molded Plastic Terminals: Solder Plated, Solderable Per MIL-STD-750 Method 2026 Polarity: As Marked Mounting Position: Any ITO-220J B N D E MA H JC K G L L F ORDER INFORMATION Part Number MBR1040F~MBR10200F MBR1040F-C~MBR10200F-C Type Lead (Pb)-fre

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR10100F, MBR1040F. Please refer to the document for exact specifications by model.

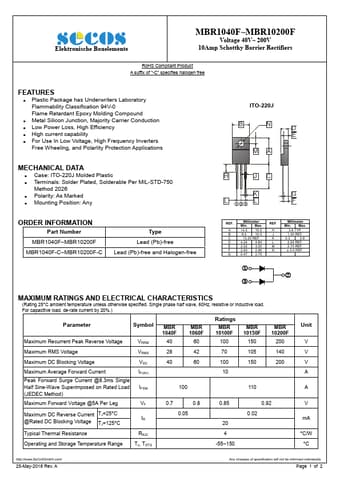

datasheet Preview Page 2

Datasheet Details

Part number
MBR10100F, MBR1040F
Manufacturer
SeCoS
File Size
256.44 KB
Datasheet
MBR1040F-SeCoS.pdf
Description
Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR10100F, MBR1040F.
Please refer to the document for exact specifications by model.
