PZT4403 - Epitaxial Planar Transistor

Description

The PZT4403 is designed for general purpose switching and amplifier applications.

Features

  • High Power Dissipation: 1500mW at 25 oC.
  • High DC Current Gain: 100~300 at 150mA.
  • Complementary to PZT4401 4403.

📥 Download Datasheet

Datasheet preview – PZT4403

Datasheet Details

Part number PZT4403
Manufacturer SeCoS
File Size 694.24 KB
Description Epitaxial Planar Transistor
Datasheet download datasheet PZT4403 Datasheet
Additional preview pages of the PZT4403 datasheet.

📁 Similar Datasheet

  • PZT4403 - PNP Transistor (WEJ)
  • PZT4403 - 40V 600mA PNP switching transistor (nexperia)
  • PZT4403 - PNP switching transistor (NXP)
  • PZT4403 - PNP Transistors (Kexin)
  • PZT4403-Q - 40V 600mA PNP switching transistor (nexperia)
  • PZT4401 - NPN switching transistor (NXP)
  • PZT4401 - NPN Transistor (WEJ)
  • PZT4401 - NPN Transistors (Kexin)
  • PZT4033 - PNP SILICON TRANSISTOR (UTC)
  • PZT159 - PNP Silicon Planar High Current Transistor (Weitron Technology)
Other Datasheets by SeCoS
  • PZT4401 - Epitaxial Planar Transistor
  • PZT158 - Silicon Planar High Current Transistor
  • PZT159 - High Current Transistor
  • PZT194 - Silicon Planar Medium Power Transistor
  • PZT195 - Medium Power Transistor
  • PZT2222A - General Purpose Transistor
  • PZT2222A-C - NPN Transistor
  • PZT2907A - Silicon Planar Medium Power Transistor

Full PDF Text Transcription

Click to expand full text

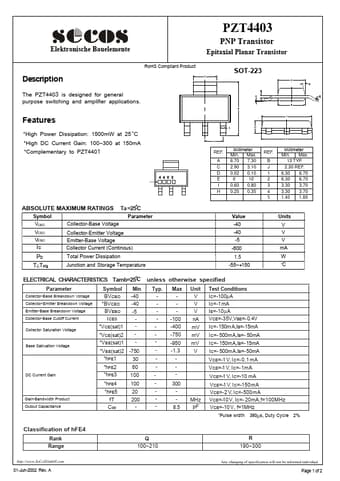

Elektronische Bauelemente Description RoHS Compliant Product The PZT4403 is designed for general purpose switching and amplifier applications. PZT4403 PNP Transistor Epitaxial Planar Transistor SOT-223 Features *High Power Dissipation: 1500mW at 25 oC *High DC Current Gain: 100~300 at 150mA *Complementary to PZT4401 4403 ABSOLUTE MAXIMUM RATINGS Ta=25oC Symbol Parameter VCBO Collector-Base Voltage VCEO VEBO IC Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continous) PD Total Power Dissipation TJ,Tstg Junction and Storage Temperature REF. A C D E I H Millimeter Min. Max. 6.70 7.30 2.90 3.10 0.02 0.10 0 10 0.60 0.80 0.25 0.35 REF. B J 1 2 3 4 5 Millimeter Min. Max. 13 TYP. 2.30 REF. 6.30 6.70 6.30 6.70 3.30 3.70 3.30 3.70 1.40 1.
