SGM2308 - N-Channel MOSFET

SGM2308 Description

Elektronische Bauelemente SGM2308 3A, 60V,RDS(ON) 160m N-Channel Enhancement Mode Power Mos.FET RoHS Compliant Product .
The SGM2308 utilized advanced processing techniques to achieve the lowest possible on-resistance, extremely efficient and cost-effectiveness device.

SGM2308 Features

* Simple Drive Requirement
* Small Package Outline D G S SOT-89 REF. A B C D E F Millimeter Min. Max. 4.4 4.6 4.05 4.25 1.50 1.70 1.30 1.50 2.40 2.60 0.89 1.20 REF. G H I J K L M Millimeter Min. Max. 3.00 REF. 1.50 REF. 0.40 0.52 1.40 1.60 0.35 0.41 5° TYP. 0.70 REF. Absolute Maximum R

📥 Download Datasheet

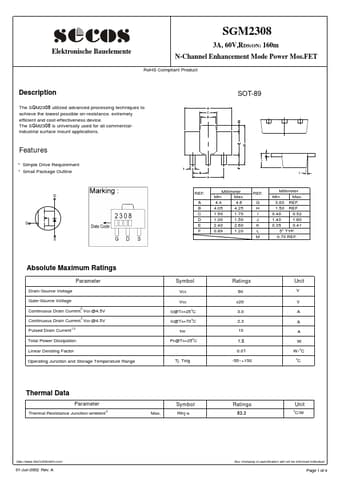

Preview of SGM2308 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGM2308
Manufacturer
SeCoS
File Size
367.20 KB
Datasheet
SGM2308-SeCoS.pdf
Description
N-Channel MOSFET
