SM1150AM

1.0 AMP Surface Mount Schottky Barrier Rectifiers

SM1150AM Features

* Low profile package

* Glass Passivated Chip Juntion

* Low reverse current RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free SMAM MECHANICAL DATA

* Case : SMAM

* Terminals: Solderable per MIL-STD-750, Method 2026

* Weight: 27 mgram (Approximate) MARKI

SM1150AM Datasheet (206.92 KB)

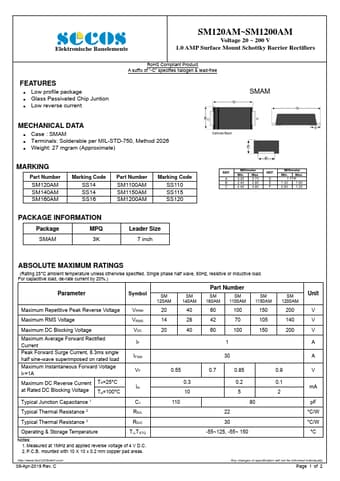

Preview of SM1150AM PDF

Datasheet Details

Part number:

SM1150AM

Manufacturer:

SeCoS

File Size:

206.92 KB

Description:

1.0 amp surface mount schottky barrier rectifiers.
