SM1150AM-C

1.0 Amp Surface Mount Schottky Barrier Rectifiers

SM1150AM-C Features

* Low Profile Package

* Glass Passivated Chip Junction

* Low Reverse Current MECHANICAL DATA

* Case: SMAM

* Terminals: Solderable per MIL-STD-750, Method 2026 SMAM MARKING Part Number SM120AM-C SM140AM-C SM160AM-C Marking Code SS14 SS14 SS16 Part Number SM1100AM-C SM1150AM-C

SM1150AM-C Datasheet (233.23 KB)

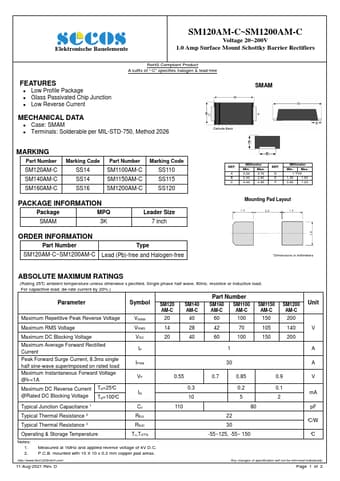

Preview of SM1150AM-C PDF

Datasheet Details

Part number:

SM1150AM-C

Manufacturer:

SeCoS

File Size:

233.23 KB

Description:

1.0 amp surface mount schottky barrier rectifiers.
Elektronische Bauelemente SM120AM-C~SM1200AM-C Voltage 20~200V 1.0 Amp Surface Mount Schottky Barrier Rectifiers RoHS Compliant Product A suffix of .
