SM1150A

Schottky Barrier Rectifiers

SM1150A Features

* Low profile package

* Ideal for automated placements

* Guard ring for over voltage protection

* Low forward voltage drop MECHANICAL DATA

* Cases: SMA

* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

* Terminals: Lead free plating (Tin finish

SM1150A Datasheet (204.76 KB)

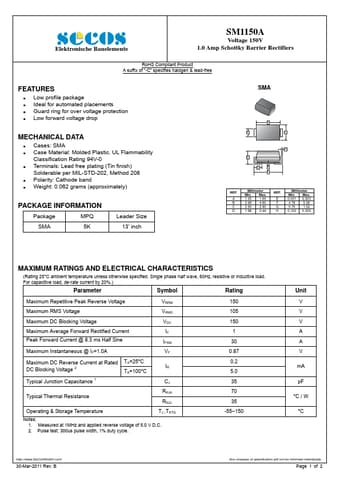

Preview of SM1150A PDF

Datasheet Details

Part number:

SM1150A

Manufacturer:

SeCoS

File Size:

204.76 KB

Description:

Schottky barrier rectifiers.
Elektronische Bauelemente SM1150A Voltage 150V 1.0 Amp Schottky Barrier Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-.
