SSG4842N - N-Ch Enhancement Mode Power MOSFET

Product Overview

SeCoS

Datasheet Details

Part number	SSG4842N
Manufacturer	SeCoS
File Size	136.58 KB
Description	N-Ch Enhancement Mode Power MOSFET
Datasheet	SSG4842N Datasheet

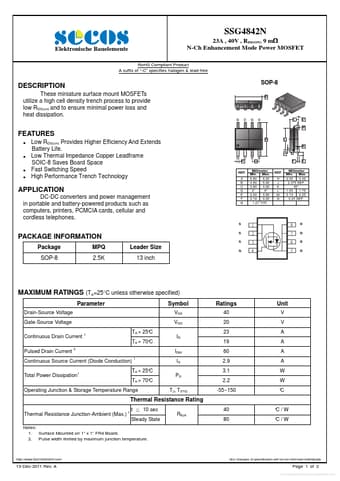

Additional preview pages of the SSG4842N datasheet.

Product details

Description

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation.

Features

Low RDS(on) Provides Higher Efficiency And Extends Battery Life. Low Thermal Impedance Copper Leadframe SOIC-8 Saves Board Space Fast Switching Speed High Performance Trench Technology A C N J H G Millimeter Min. Max. 5.80 6.20 4.80 5.00 3.80 4.00 0° 8° 0.40 0.90 0.19 0.25 1.27 TYP. K F REF. H J K L M N E REF. A B C D E F G.
