2N6303 Datasheet - Seme LAB

2N6303 Bipolar PNP Device

2N6303 Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. (00.0.8395)max. 0.41 (0.016) 0.53 (0.021) dia. 5.08 (0.200) typ. 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 2 13 45° 2.54 (0.100) 1 Emitter TO39 (TO205AD) PINOUTS 2 Base 3 Collector Bipolar PNP Device in a Hermetically sealed TO39 Metal Package. Bipolar PNP Device. VCEO = 120V IC = 0.5A All Semelab hermetically sealed.

2N6303 Datasheet (10.13 KB)

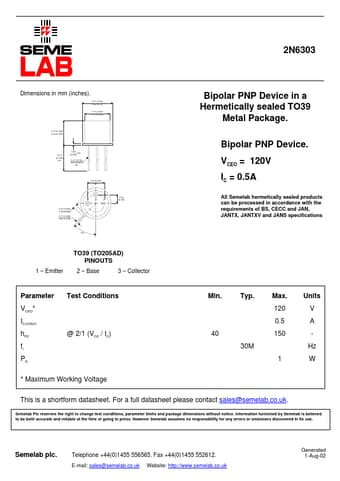

Preview of 2N6303 PDF

Datasheet Details

Part number:

2N6303

Manufacturer:

Seme LAB

File Size:

10.13 KB

Description:

Bipolar pnp device.
