2N6315 Datasheet - Seme LAB

2N6315 COMPLEMENTARY SILICON MEDIUM POWER TRANSISTORS

MECHANICAL DATA Dimensions in mm (inches) 3.68 (0.145) rad. max. 3.61 (0.142) 4.08(0.161) rad. 12 2N6315 2N6317 6.35 (0.250) 8.64 (0.340) COMPLEMENTARY SILICON MEDIUM POWER TRANSISTORS COMPLEMENTARY TRANSISTORS 2N6315 (NPN) AND 2N6317 (PNP) 24.13 (0.95) 24.63 (0.97) 14.48 (0.570) 14.99 (0.590) 0.71 (0.028) 0.86 (0.034) 11.94 (0.470) 12.70 (0.500) 4.83 (0.190) 5.33 (0.210) 9.14 (0.360) min. 1.27 (0.050) 1.91 (0.750) Pin 1 Base TO 66 (TO-213AA) Pin 2 Emitter.

2N6315 Features

* Low Collector Emitter Saturation Voltage

* Low Leakage Current

* Excellent DC Current Gain APPLICATIONS: Designed for general purpose amplifier and switching applications. ABSOLUTE MAXIMUM RATINGS(Tc = 25°C unless otherwise stated) VCEO Collector

* Emitter Voltag

2N6315-SemeLAB.pdf

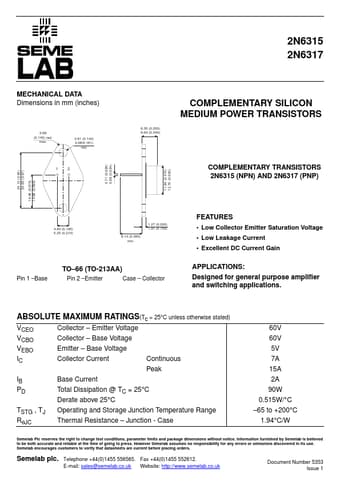

Preview of 2N6315 PDF
2N6315 Datasheet Preview Page 2

Datasheet Details

Part number:

2N6315

Manufacturer:

Seme LAB

File Size:

16.21 KB

Description:

Complementary silicon medium power transistors.
