2N6306 Datasheet - Seme LAB

2N6306 Bipolar NPN Device

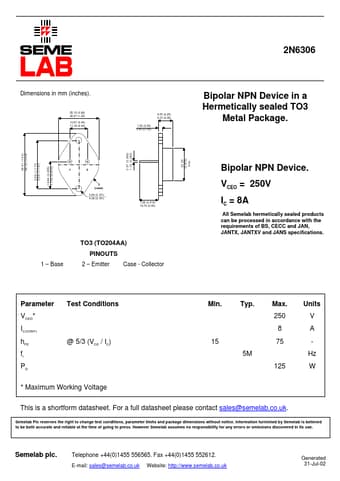

2N6306 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 6.35 (0.25) 9.15 (0.36) 1.52 (0.06) 3.43 (0.135) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 29.9 (1.177) 30.4 (1.197) 16.64 (0.655) 17.15 (0.675) 0.97 (0.060) 1.10 (0.043) 22.23 (0.875) max. 12 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) 1 Base TO3 (TO204AA) PINOUTS 2 Emitter Case - Collector Bipolar NPN Device. VCEO = 2.

2N6306-SemeLAB.pdf

Preview of 2N6306 PDF

Datasheet Details

Part number:

2N6306

Manufacturer:

Seme LAB

File Size:

11.43 KB

Description:

Bipolar npn device.
