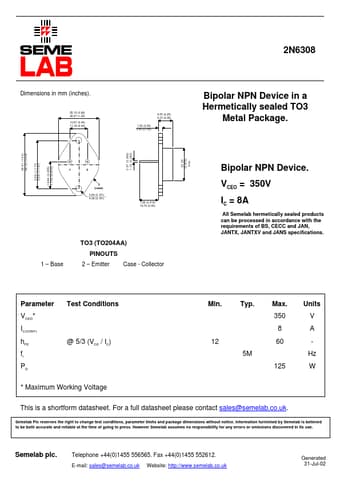

2N6308 Datasheet (Seme LAB) - Bipolar NPN Device

2N6308, Bipolar NPN Device

2N6308 Dimensions in mm (inches).

25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 6.35 (0.25) 9.15 (0.36) 1.52 (0.06) 3.43 (0.135) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package.

38.61 (1.52) 39.12 (1.54) 29.9 (1.177) 30.4 (1.197) 16.64 (0.655) 17.15 (0.675) 0.97 (0.060) 1.10 (0.043) 22.23 (0.875) max.

12 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) 1 Base TO3 (TO204AA) PINOUTS 2 Emitter Case - Collector Bipolar NPN Device.

VCEO = 3
