IP7800, 1 AMP POSITIVE VOLTAGE REGULATOR

IP140A IP140 IP7800A IP7800 LM140 SERIES SERIES SERIES SERIES SERIES 1 1 2 2 1 AMP POSITIVE VOLTAGE REGULATOR 3 3 .
The IP140A / LM140 / IP7800A / IP7800 series of 3 terminal regulators is available with several fixed output voltage making them useful in a wide rang.

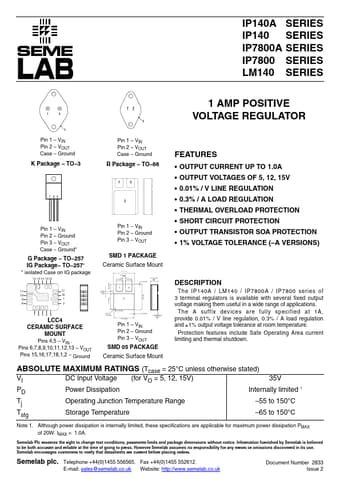

datasheet Preview Page 1 from Datasheet4u.com

IP7800_SemeLAB.pdf

IP7800 Datasheet Preview — Preview of IP7800 PDF

Datasheet Details

Part number:

IP7800

Manufacturer:

Seme LAB

File Size:

68.40 KB

Description:

1 AMP POSITIVE VOLTAGE REGULATOR

Features

* Pin 1
* VIN Pin 2
* VOUT Case
* Ground Pin 1
* VIN Pin 2
* VOUT Case
* Ground
* OUTPUT CURRENT UP TO 1.0A
* OUTPUT VOLTAGES OF 5, 12, 15V
* 0.01% / V LINE REGULATION
* 0.3% / A LOAD REGULATION
* THERMAL OVERLOA
