IP7812 Datasheet, Regulator, Seme LAB

IP7812 Features

• Regulator Pin 1
    – VIN Pin 2
    – VOUT Case
    – Ground Pin 1
    – VIN Pin 2
    – VOUT Case
    – Ground

PDF File Details

Part number:

IP7812

Manufacturer:

Seme LAB

File Size:

55.84kb

Download:

📄 Datasheet

Description:

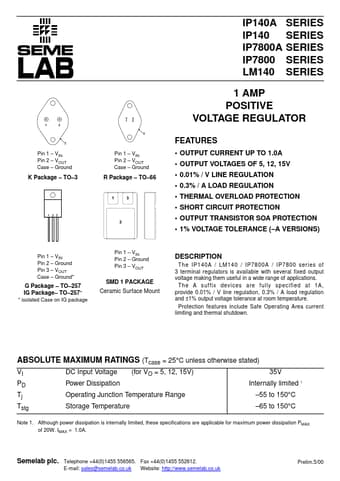

1 amp positive voltage regulator. The IP140A / LM140 / IP7800A / IP7800 series of 3 terminal regulators is available with several fixed output voltage making them usef

IP7812 Application

• Applications The A suffix devices are fully specified at 1A, provide 0.01% / V line regulation, 0.3% / A load regulation and ±1% output voltage tol
