IP7812A 1 AMP POSITIVE VOLTAGE REGULATOR

Seme LAB

Description

IP140A IP140 IP7800A IP7800 LM140 SERIES SERIES SERIES SERIES SERIES 1 1 2 2 1 AMP POSITIVE VOLTAGE REGULATOR 3 3 .
The IP140A / LM140 / IP7800A / IP7800 series of 3 terminal regulators is available with several fixed output voltage making them useful in a wide rang.

📥 Download Datasheet

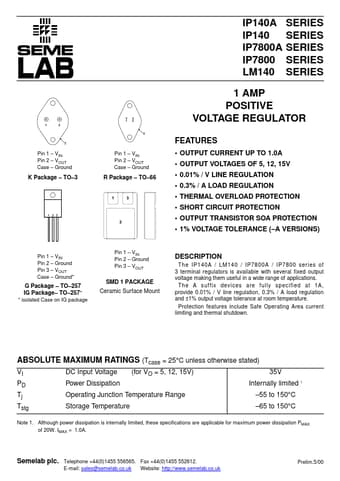

IP7812A Datasheet Preview — Preview of IP7812A PDF

Datasheet Specifications

Part number: IP7812A
Manufacturer: Seme LAB
File Size: 55.84 KB
Datasheet: IP7812A_SemeLAB.pdf
Description: 1 AMP POSITIVE VOLTAGE REGULATOR

Features

* Pin 1
* VIN Pin 2
* VOUT Case
* Ground Pin 1
* VIN Pin 2
* VOUT Case
* Ground
* OUTPUT CURRENT UP TO 1.0A
* OUTPUT VOLTAGES OF 5, 12, 15V
* 0.01% / V LINE REGULATION
* 0.3% / A LOAD REGULATION
* THERMAL OVERLOA
