IP7800A Datasheet, Regulator, Seme LAB

IP7800A Features

  • Regulator Pin 1
      – VIN Pin 2
      – VOUT Case
      – Ground Pin 1
      – VIN Pin 2
      – VOUT Case
      – Ground

PDF File Details

Part number:

IP7800A

Manufacturer:

Seme LAB

File Size:

68.40kb

Download:

📄 Datasheet

Description:

1 amp positive voltage regulator. The IP140A / LM140 / IP7800A / IP7800 series of 3 terminal regulators is available with several fixed output voltage making them usef

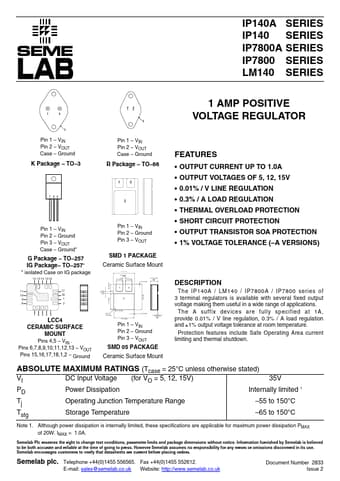

Datasheet Preview: IP7800A 📥 Download PDF (68.40kb)
Page 2 of IP7800A Page 3 of IP7800A

IP7800A Application

  • Applications The A suffix devices are fully specified at 1A, provide 0.01% / V line regulation, 0.3% / A load regulation and ±1% output voltage tol
