IRF230 Datasheet (Seme LAB) - N-Channel Power MOSFET

IRF230, N-Channel Power MOSFET

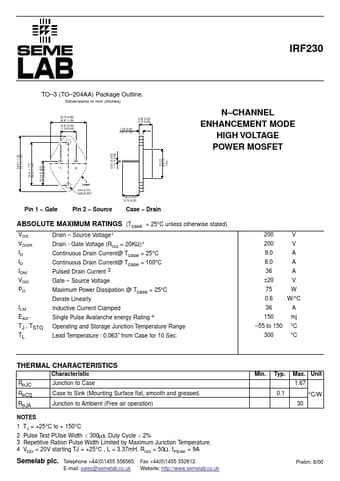

IRF230 TO 3 (TO 204AA) Package Outline.

Dimensions in mm (inches) 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) N CHANNEL ENHANCEMENT MODE HIGH VOLTAGE POWER MOSFET 22.23 (0.875) max.

38.61 (1.52) 39.12 (1.54) 29.9 (1.177) 30.4 (1.197) 16.64 (0.655) 17.15 (0.675) 1 2 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) Pin 1 Gate Pin 2 Source 0.97 (0.060) 1.10 (0.043) Case
