IRF234 Datasheet, Mosfet, Intersil Corporation

IRF234 Features

  • Mosfet
  • 8.1A and 6.5A, 275V and 250V
  • rDS(ON) = 0.45Ω and 0.68Ω
  • Single Pulse Avalanche Energy Rated
  • SOA is Power Dissipation Limited
  • Nanosecond

PDF File Details

Part number:

IRF234

Manufacturer:

Intersil Corporation

File Size:

69.15kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These are N-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, an

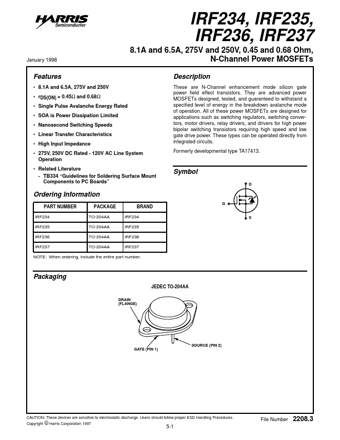

Datasheet Preview: IRF234 📥 Download PDF (69.15kb)
Page 2 of IRF234 Page 3 of IRF234

IRF234 Application

  • Applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transist
