IRF235 - N-Channel Power MOSFET

IRF235 Description

Semiconductor IRF234, IRF235, IRF236, IRF237 8.1A and 6.5A, 275V and 250V, 0.45 and 0.68 Ohm, N-Channel Power MOSFETs .
These are N-Channel enhancement mode silicon gate power field effect transistors.

IRF235 Features

* 8.1A and 6.5A, 275V and 250V
* rDS(ON) = 0.45Ω and 0.68Ω
* Single Pulse Avalanche Energy Rated
* SOA is Power Dissipation Limited
* Nanosecond Switching Speeds
* Linear Transfer Characteristics
* High Input Impedance
* 275V, 250V DC R

IRF235 Applications

* such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA17413. January 1998

📥 Download Datasheet

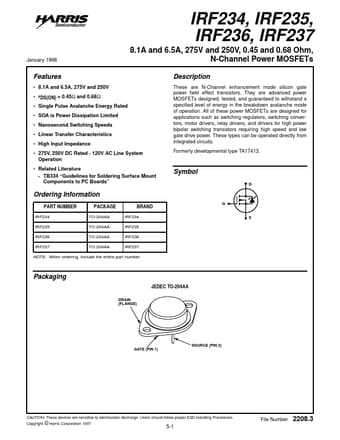

Preview of IRF235 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRF235
Manufacturer
Intersil Corporation
File Size
69.15 KB
Datasheet
IRF235_IntersilCorporation.pdf
Description
N-Channel Power MOSFET
