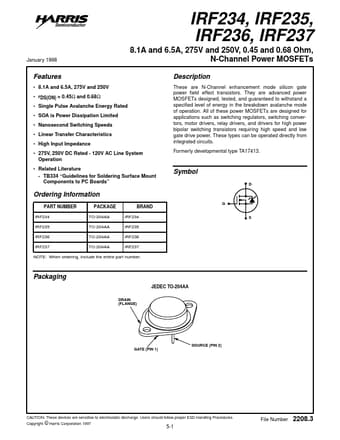

IRF236 Datasheet, Mosfet, Intersil Corporation

IRF236 Features

• Mosfet
• 8.1A and 6.5A, 275V and 250V
• rDS(ON) = 0.45Ω and 0.68Ω
• Single Pulse Avalanche Energy Rated
• SOA is Power Dissipation Limited
• Nanosecond

PDF File Details

Part number:

IRF236

Manufacturer:

Intersil Corporation

File Size:

69.15kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These are N-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, an

IRF236 Application

• Applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transist
