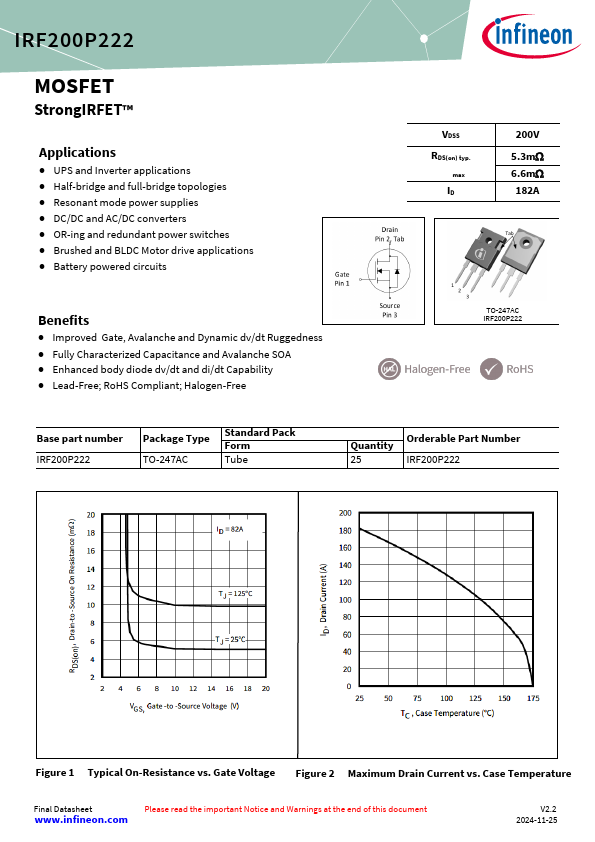

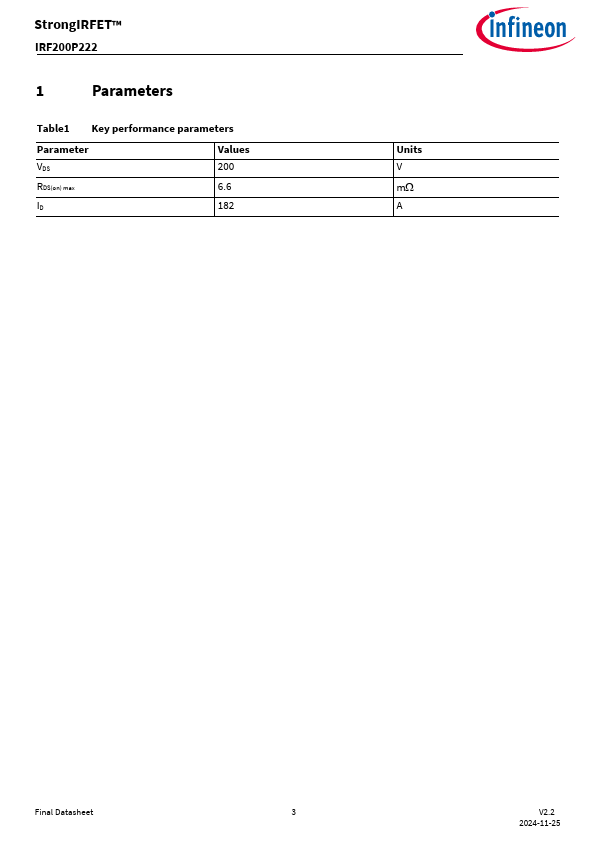

IRF200P222 MOSFET StrongIRFET Applications ⚫ UPS and Inverter applications ⚫ Half-bridge and full-bridge topologies ⚫ Resonant mode power supplies ⚫ DC/DC and AC/DC converters ⚫ OR-ing and redundant power switches ⚫ Brushed and BLDC Motor drive applications ⚫ Battery powered circuits VDSS RDS(on) typ. max ID 200V 5.3m 6.6m 182A Benefits ⚫ Improved Gate, Avalanche and Dynamic dv/dt Ruggedness ⚫ Fully Characterized Capacitance and Avalanche SOA ⚫ Enhanced body diode dv/dt and di/dt Capability ⚫ Lead-Free; RoHS Compliant; Halogen-Free TO-247AC IRF200P222 Base part number IRF200P222 Package Type Standard Pack Form TO-247AC Tube Quantity Orderable Part Number 25 IRF200P222 Figure 1 Typical On-Resistance vs. Gate Voltage Figure 2 Maximum Drain Current vs.
