HFD1N70 - N-Channel MOSFET

Product Overview

SemiHow

Part number	HFD1N70
Manufacturer	SemiHow
File Size	695.58 KB
Description	N-Channel MOSFET
Datasheet	HFD1N70 Datasheet

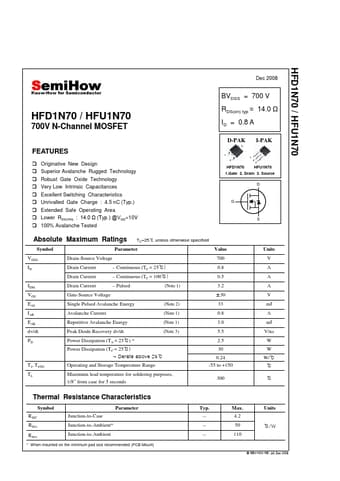

Additional preview pages of the HFD1N70 datasheet.

 Originative New Design  Superior Avalanche Rugged Technology  Robust Gate Oxide Technology  Very Low Intrinsic Capacitances  Excellent Switching Characteristics  Unrivalled Gate Charge : 4.5 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 14.0 Ω (Typ. ) @VGS=10V  100% Avalanche Tested D-PAK I-PAK 2 1 3 HFD1N70 1 2 3 HFU1N70 1.Gate 2. Drain 3. Source D G S Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS IAR EAR dv.
