PE01P18KT - P-Channel Enhancement Mode Power MOSFET

PE01P18KT Description

P-Channel Enhancement Mode Power MOSFET .
The PE01P18KT uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

PE01P18KT Features

* VDS = -100V, ID = -18A RDS(ON) < 90mΩ @ VGS=-10V RDS(ON) < 100mΩ @ VGS=-4.5V
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

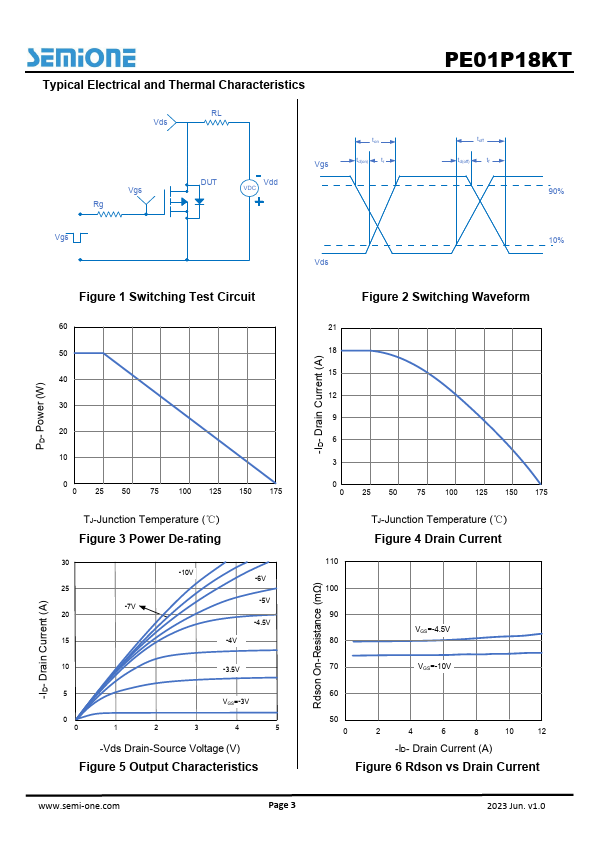

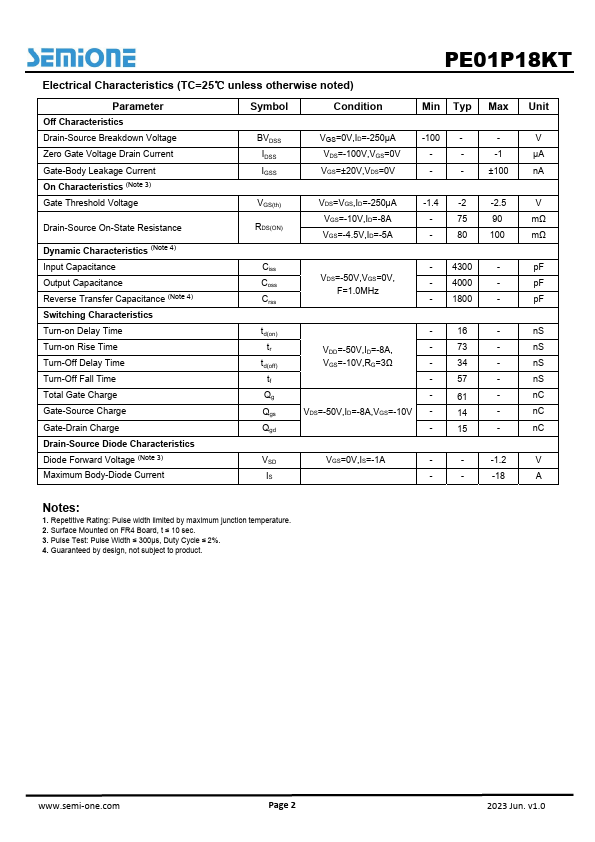

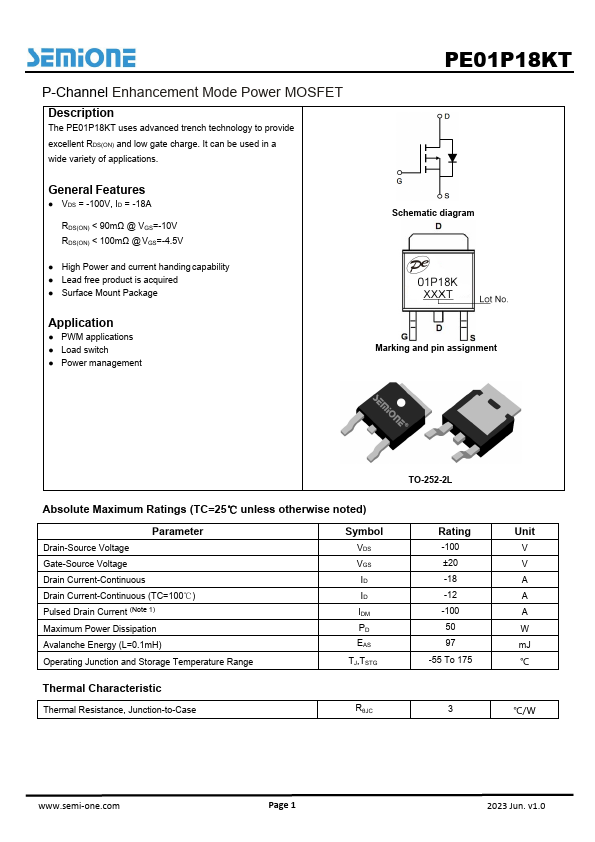

Preview of PE01P18KT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PE01P18KT
Manufacturer
Semione
File Size
381.20 KB
Datasheet
PE01P18KT-semione.pdf
Description
P-Channel Enhancement Mode Power MOSFET
