PE4419 - P-Channel Enhancement Mode Power MOSFET

Semione

The PE4419 by Semione is a P-Channel Enhancement Mode Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

PE4419 P-Channel Enhancement Mode Power MOSFET by Semione - Datasheet Preview — Official preview page of the PE4419 P-Channel Enhancement Mode Power MOSFET datasheet (Semione).

Datasheet Details

Part number	PE4419
Manufacturer	Semione
File Size	565.64 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE4419-Semione.pdf

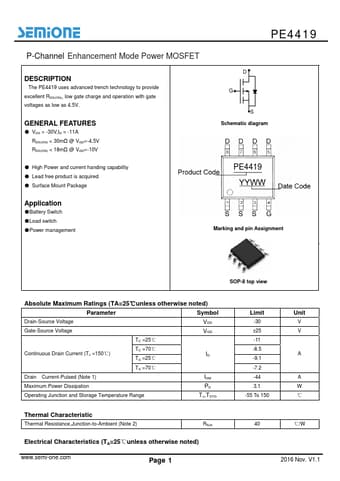

Additional preview pages of the PE4419 datasheet.

PE4419 Product details

Description

The PE4419 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -11A RDS(ON) < 30mΩ @ VGS=-4.5V RDS(ON) < 18mΩ @ VGS=-10V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package D G S Schematic diagram PE4419.
