PE4435A - P-Channel Enhancement Mode Power MOSFET

Semione

📥 Download Datasheet

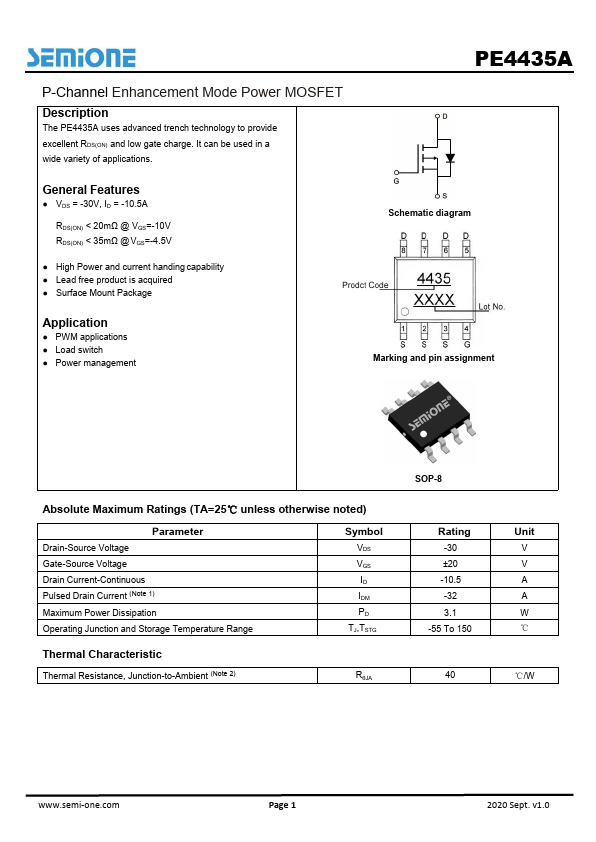

PE4435A Datasheet Preview — Preview of PE4435A PDF

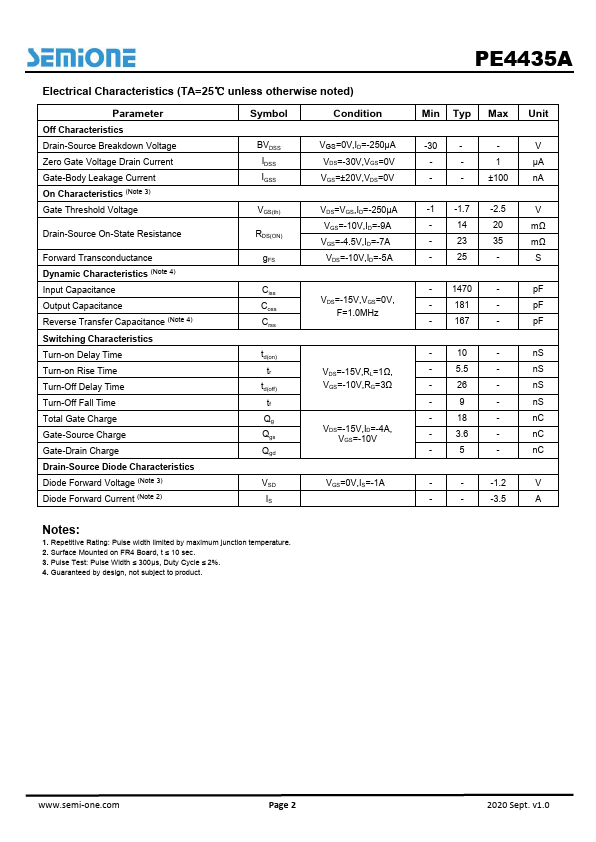

datasheet Preview Page 2

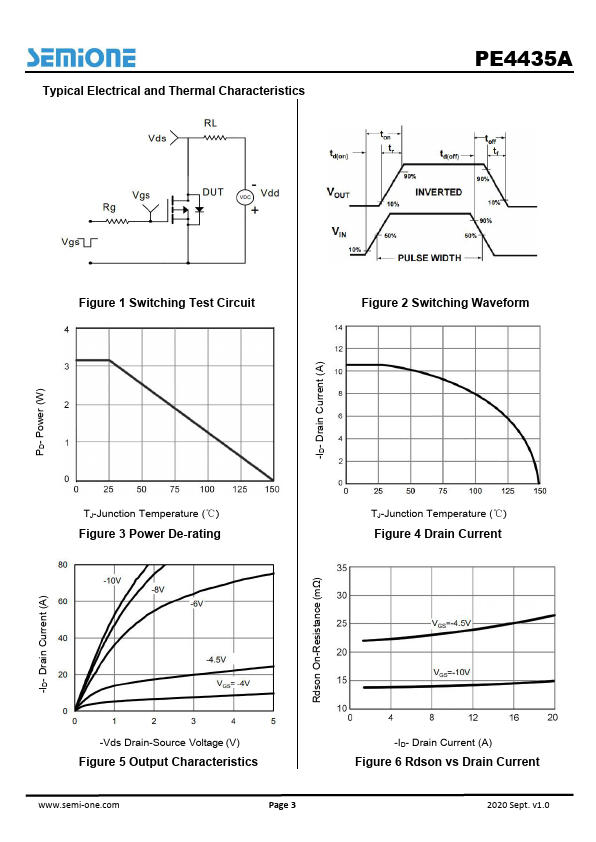

datasheet Preview Page 3

Datasheet Details

Part number	PE4435A
Manufacturer	Semione
File Size	596.82 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE4435A-Semione.pdf

PE4435A Product details

Description

The PE4435A uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = -30V, ID = -10.5A RDS(ON) < 20mΩ @ VGS=-10V RDS(ON) < 35mΩ @ VGS=-4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
