PE6050K N-Channel Enhancement Mode Power MOSFET

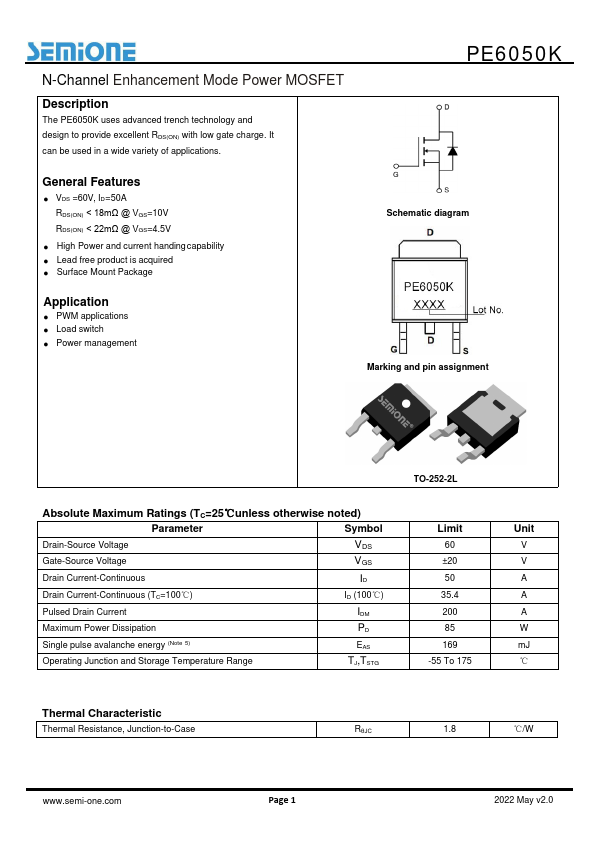

📥 Download Datasheet Datasheet Preview Page 1

Description

N-Channel Enhancement Mode Power MOSFET .
The PE6050K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

📥 Download Datasheet

Preview of PE6050K PDF

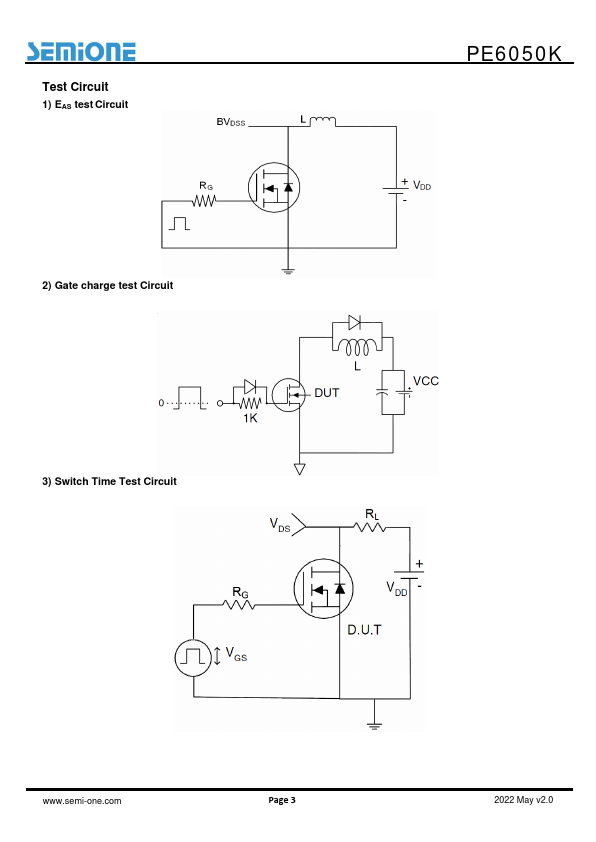

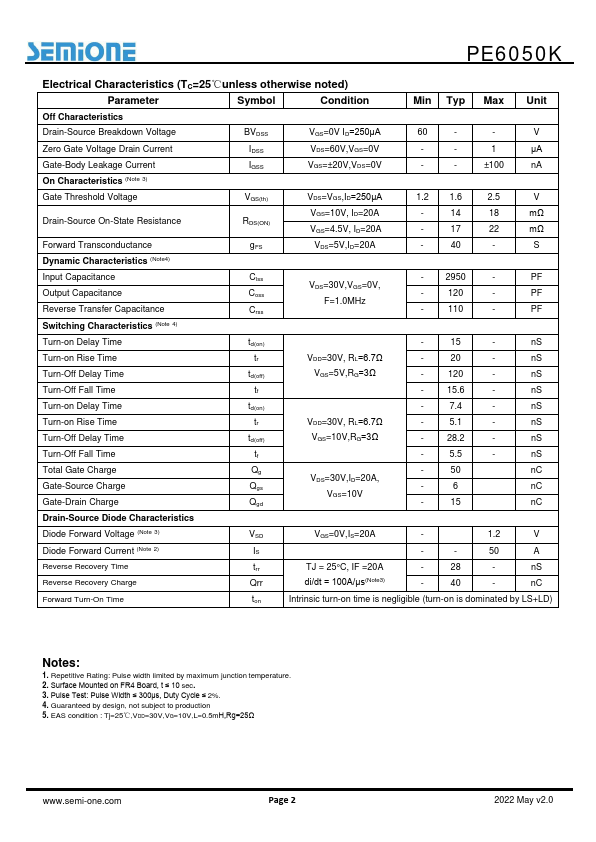

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PE6050K
Manufacturer
Semione
File Size
583.20 KB
Datasheet
PE6050K-Semione.pdf
Description
N-Channel Enhancement Mode Power MOSFET

Features

* VDS =60V, ID=50A RDS(ON) < 18mΩ @ VGS=10V RDS(ON) < 22mΩ @ VGS=4.5V
* High Power and current handing capability
* Lead free product is acquired
