SX1277, SX1276 Low Power Long Range Transceiver

SX1277 Description

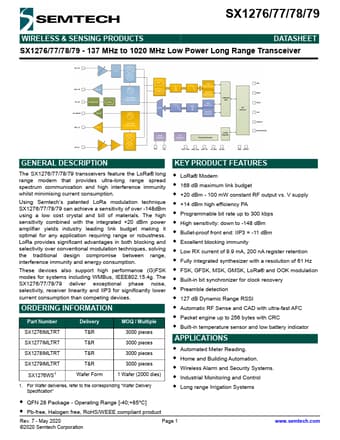

SX1276/77/78/79 WIRELESS & SENSING PRODUCTS DATASHEET SX1276/77/78/79 - 137 MHz to 1020 MHz Low Power Long Range Transceiver GENERAL .
KEY PRODUCT FEATURES The SX1276/77/78/79 transceivers feature the LoRa® long range modem that provides ultra-long range spread spectrum communicatio.

SX1277 Features

* The SX1276/77/78/79 transceivers feature the LoRa® long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. Using Semtech’s patented LoRa modulation technique SX1276/77/78/79 can achieve a sensitivity of over

SX1277 Applications

* Automated Meter Reading.
* Home and Building Automation.
* Wireless Alarm and Security Systems.
* Industrial Monitoring and Control
* Long range Irrigation Systems
* QFN 28 Package - Operating Range [-40;+85°C]
* Pb-free, Halogen free, RoHS/WEEE compliant product Rev.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SX1277, SX1276. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SX1277, SX1276
Manufacturer
Semtech Corporation
File Size
4.92 MB
Datasheet
SX1276-SemtechCorporation.pdf
Description
Low Power Long Range Transceiver
Note
This datasheet PDF includes multiple part numbers: SX1277, SX1276.
Please refer to the document for exact specifications by model.
