TS14002 - Ultra-Low-Power Linear Regulator

Semtech

The TS14002 by Semtech is a Ultra-Low-Power Linear Regulator. Below is the official datasheet preview.

📥 Download Datasheet

TS14002 Ultra-Low-Power Linear Regulator by Semtech - Datasheet Preview — Official preview page of the **TS14002** Ultra-Low-Power Linear Regulator datasheet (Semtech).

Datasheet Details

Part number	TS14002
Manufacturer	Semtech
File Size	554.46 KB
Description	Ultra-Low-Power Linear Regulator
Datasheet	TS14002-Semtech.pdf
Additional preview pages of the TS14002 datasheet.

TS14002 Product details

Description

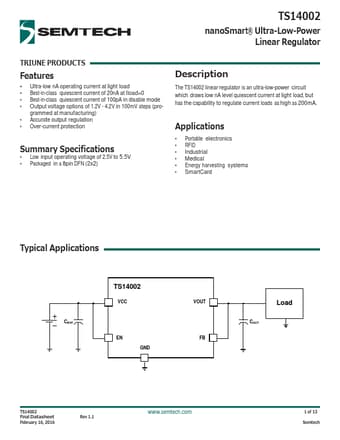

The TS14002 linear regulator is an ultra-low-power circuit which draws low nA level quiescent current at light load, but has the capability to regulate current loads as high as 200mA. Portable electronics RFID Industrial Medical Energy harvesting systems SmartCard Typical Applications TS14002 VCC CBYP EN GND VOUT FB Load COUT TS14002 Final Datasheet February 16, 2016 Rev 1.1 www.semtech.com 1 of 13 Semtech Block

Features

Ultra-low nA operating current at light load.
Best-in-class quiescent current of 20nA at Iload=0.
Best-in-class quiescent current of 100pA in disable mode.
Output voltage options of 1.2V - 4.2V in 100mV steps (pro- grammed at manufacturing).
Accurate output regulation.
Over-current protection Summary Specifications.
Low input operating voltage of 2.5V to 5.5V.
Packaged in a 8pin DFN (2x2).
