TS1431A

(TS1431A/B) Adjustable Precision Shunt Regulator

TS1431A Features

* — Precision Reference Voltage TS1431 2.495V±2% Standard Application TS1431A 2.495V±1% TS1431B 2.495V±0.5% — — — — — o Equivalent Full Range Temp. Coefficient: 50ppm/ C Programmable Output Voltage up to 36V Fast Turn-On Response Sink Current Capability of 1.0 to 100 mA Low Dynamic Output Impedance

TS1431A General Description

The TS1431/1431A/1431B integrated circuits are three-terminal programmable shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient zener which is programmable from Vref to 36 volts with two external resistors. These devices exhibit a wide operating cur.

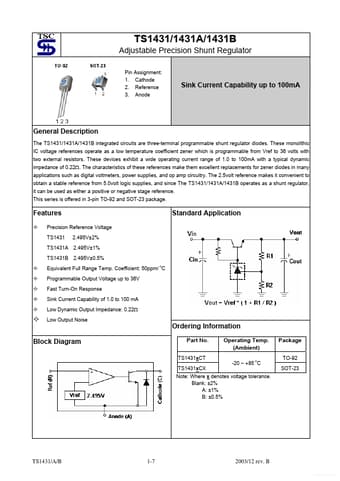

TS1431A Datasheet (217.95 KB)

Preview of TS1431A PDF

Datasheet Details

Part number:

TS1431A

Manufacturer:

Taiwan Semiconductor

File Size:

217.95 KB

Description:

(ts1431a/b) adjustable precision shunt regulator.
TS1431/1431A/1431B Adjustable Precision Shunt Regulator Pin Assignment: 1. Cathode 2. Reference 3. Anode Sink Current Capability up to 100mA General.
