TS14 Datasheet - Suntan

TS14 HIGH TEMPERATURE ALUMINUM ELECTROLYTIC CAPACITOR

HIGH TEMPERATURE ALUMINUM ELECTROLYTIC CAPACITOR-105℃ TS14 FEAT U R E S ‧ Wide temperature range, long life: 105℃ 2000 hours ‧ Miniature and low impedance Suntan® ‹ Specifications ITEMS Operating Temperature Range(℃) Rated Voltage Range (V) Capacitance Tolerance (25℃, 120Hz) Leakage current (μA) PERFORMANCE -40~+105 6.3~100 ±20% CHARACTERISTICS -40~+105 160~400 0.01CV or 3 whichever is greater. (at 25℃, after 2 minutes) C: Nominal Capacitance (μF) V: Rated Voltage (V) CV≤1000: 0.1CV+40 .

TS14-Suntan.pdf

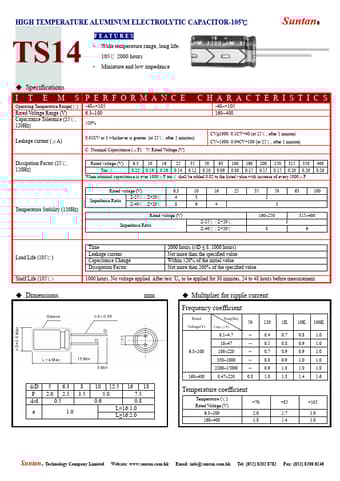

Preview of TS14 PDF
TS14 Datasheet Preview Page 2

Datasheet Details

Part number:

TS14

Manufacturer:

Suntan

File Size:

302.74 KB

Description:

High temperature aluminum electrolytic capacitor.
