TS1451

Dual Channel PWM Controller

TS1451 Features

* — — — — — — Dual PWM Power Control Circuitry Operating Voltage Can be up to 50V Adjustable Dead Time Control (DTC) Under Voltage Lock Out protection (UVLO) Short Circuit Protection (SCP) Variable Oscillator Frequency up to 500KHz 2.5V Voltage Reference Output Pin Assignments — Applications — Back

TS1451 General Description

The TS1451 integrates dual channel PWM control circuit into a single chip, mainly designs for power supply regulator. All the functions included an on-chip 2.5V reference output, two error amplifiers, and adjustable oscillator, two dead-time comparators, under voltage lock out, short circuit protect.

TS1451 Datasheet (159.56 KB)

Preview of TS1451 PDF

Datasheet Details

Part number:

TS1451

Manufacturer:

Taiwan Semiconductor

File Size:

159.56 KB

Description:

Dual channel pwm controller.
TS1451 Dual Channel PWM Controller SOP-16 DIP-16 Supply Voltage Range 3.6 V to 40V Output Driving Current 20mA Oscillator Frequency up to 500KHz Gen.

📁 Related Datasheet

TS14 - HIGH TEMPERATURE ALUMINUM ELECTROLYTIC CAPACITOR (Suntan)
HIGH TEMPERATURE ALUMINUM ELECTROLYTIC CAPACITOR-105℃ TS14 FEAT U R E S ‧ Wide temperature range, long life: 105℃ 2000 hours ‧ Miniature and low imp.

TS14002 - Ultra-Low-Power Linear Regulator (Semtech)
TS14002 nanoSmart® Ultra-Low-Power Linear Regulator TRIUNE PRODUCTS Features • Ultra-low nA operating current at light load • Best-in-class quiescent.

TS1431 - Adjustable Precision Shunt Regulator (Taiwan Semiconductor)
TS1431 Adjustable Precision Shunt Regulator TO-92 Pin Definition: 1. Cathode 2. Anode 3. Reference SOT-23 Pin Definition: 1. Cathode 2. Reference 3..

TS1431A - (TS1431A/B) Adjustable Precision Shunt Regulator (Taiwan Semiconductor)
TS1431/1431A/1431B Adjustable Precision Shunt Regulator Pin Assignment: 1. Cathode 2. Reference 3. Anode Sink Current Capability up to 100mA General.

TS1431B - (TS1431A/B) Adjustable Precision Shunt Regulator (Taiwan Semiconductor)
TS1431/1431A/1431B Adjustable Precision Shunt Regulator Pin Assignment: 1. Cathode 2. Reference 3. Anode Sink Current Capability up to 100mA General.

TS14V06N3 - Dual N-Channel Power MOSFET (Synmosaic)
TS14V06N3 Dual N-Channel Power MOSFET VDSS(V) RDS (ON) ID(A) 16mΩ(Typ)@VGS=10V 60 20 19mΩ(Typ)@VGS=4.5V FEATURE: • The GNJ14V06N is the high c.

TS10 - POLYSTYRENE FILM CAPACITOR (Suntan)
POLYSTYRENE FILM CAPACITOR-PSA&PSR INDUCTIVE, AXIAL AND RADIAL, WELDED LEAD STYLE FEAT U R E S TS10 ‧ Low dissipation factor and high insulation resis.

TS1000T - Single axis analog accelerometer (SAFRAN)
ColibrysACCELERATION Inclinometer TS1000T - DATASHEET Single axis analog accelerometer The new TS1000T is the best in class high temperature MEMS Acce.

TAGS

TS1451 Dual Channel PWM Controller Taiwan Semiconductor

Image Gallery

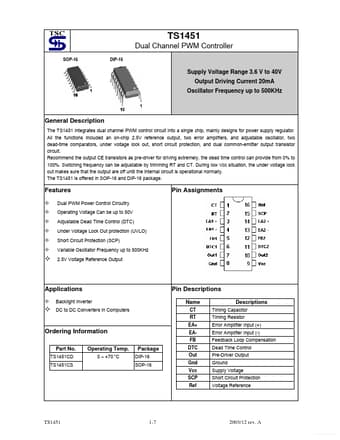

TS1451 Datasheet Preview Page 2 TS1451 Datasheet Preview Page 3
