TS1431B, TS1431A Datasheet - Taiwan Semiconductor

TS1431B (TS1431A/B) Adjustable Precision Shunt Regulator

The TS1431/1431A/1431B integrated circuits are three-terminal programmable shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient zener which is programmable from Vref to 36 volts with two external resistors. These devices exhibit a wide operating cur.

TS1431B Features

* — Precision Reference Voltage TS1431 2.495V±2% Standard Application TS1431A 2.495V±1% TS1431B 2.495V±0.5% — — — — — o Equivalent Full Range Temp. Coefficient: 50ppm/ C Programmable Output Voltage up to 36V Fast Turn-On Response Sink Current Capability of 1.0 to 100 mA Low Dynamic Output Impedance

TS1431A_TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TS1431B, TS1431A. Please refer to the document for exact specifications by model.

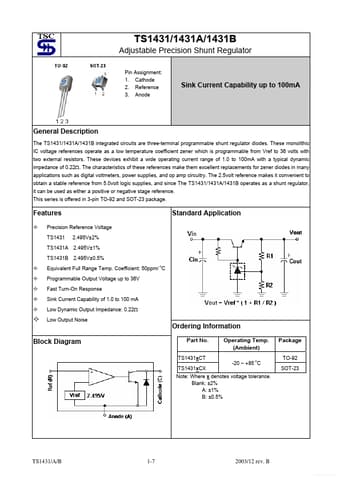

TS1431B Datasheet Preview Page 2 TS1431B Datasheet Preview Page 3

Datasheet Details

Part number:

TS1431B, TS1431A

Manufacturer:

Taiwan Semiconductor

File Size:

217.95 KB

Description:

(ts1431a/b) adjustable precision shunt regulator.

Note:

This datasheet PDF includes multiple part numbers: TS1431B, TS1431A.
Please refer to the document for exact specifications by model.
