TS51111

High Efficiency Synchronous Rectifier and Charging IC

TS51111 Features

* High efficiency synchronous rectification of AC input

* Supports both Direct and Indirect Charging applications

* Supports WPC Qi® compliant and non-compliant systems

* Low Rds-on rectifier switches

* High voltage input for higher power systems

TS51111 General Description

The TS51111 is a fully-integrated synchronous rectifier for wireless charging applications with additional integrated components to minimize system BOM. The TS51111 includes a high efficiency synchronous rectifier to convert the input AC power signal to a DC output level for battery charging. The de.

TS51111 Datasheet (926.16 KB)

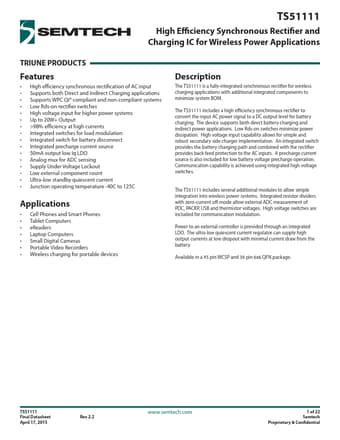

Preview of TS51111 PDF

Datasheet Details

Part number:

TS51111

Manufacturer:

Semtech

File Size:

926.16 KB

Description:

High efficiency synchronous rectifier and charging ic.
