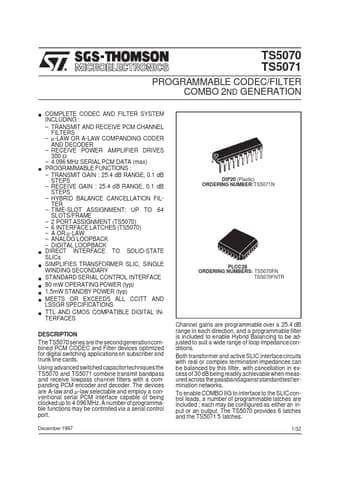

TS5070 PROGRAMMABLE CODEC/FILTER COMBO 2ND GENERATION

The TS5070series are the second generationcombined PCM CODEC and Filter devices optimized for digital switching applications on subscriber and trunk line cards. Using advanced switched capacitor techniques the TS5070 and TS5071 combine transmit bandpass and receive lowpass channel filters with a com.
TS5070 TS5071 PROGRAMMABLE CODEC/FILTER COMBO 2ND GENERATION COMPLETE CODEC AND FILTER SYSTEM INCLUDING : TRANSMIT AND RECEIVE PCM CHANNEL FILTERS µ -LAW OR A-LAW COMPANDING CODER AND DECODER RECEIVE POWER AMPLIFIER DRIVES 300 Ω 4.096 MHz SERIAL PCM DATA (max) PROGRAMMABLE FUNCTIONS : TRANSMIT GAIN : 25.4 dB RANGE, 0.1 dB STEPS RECEIVE GAIN : 25.4 dB RANGE, 0.1 dB STEPS HYBRID BALANCE CANCELLATION FILTER TIME-SLOT AS.

TS5070 Features

* The 6/32 CI/O pin is set as an input ready for the first control byte of the initialization sequence. Other initial states in the Control Register are indicated in Table 2. A reset to these same
