TS50P07G, TS50P05G Datasheet - Taiwan Semiconductor

TS50P07G, TS50P05G, 600V - 1000V Standard Bridge Rectifier

TS50P05G * TS50P07G Taiwan Semiconductor 50A, 600V - 1000V Standard Bridge Rectifier .
only.

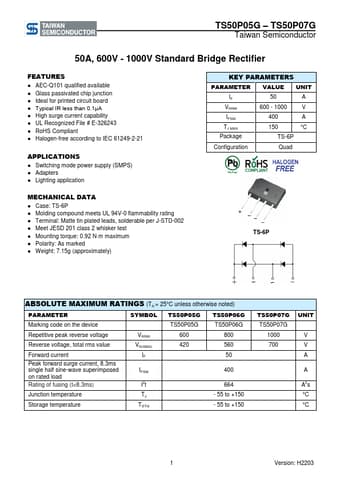

datasheet Preview Page 1 from Datasheet4u.com

TS50P05G-TaiwanSemiconductor.pdf

TS50P07G Datasheet Preview — This datasheet PDF includes multiple part numbers: TS50P07G, TS50P05G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TS50P07G, TS50P05G

Manufacturer:

Taiwan Semiconductor

File Size:

524.62 KB

Description:

600V - 1000V Standard Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: TS50P07G, TS50P05G.
Please refer to the document for exact specifications by model.

Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* Ideal for printed circuit board
* Typical IR less than 0.1μA
* High surge current capability
* UL Recognized File # E-326243
* RoHS Compliant

Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM IFSM TJ MAX Package 50 A 600 - 1000 V 400 A 150 °C TS-6P Configuration Quad MECHANICAL DATA
* Case: TS-6P
* Molding compound meets UL 94V-0 flammabili
