TS507 High precision rail-to-rail operational amplifier

📥 Download Datasheet Datasheet Preview Page 1

Description

TS507 High precision rail-to-rail operational amplifier Pin connections (top view) Output 1 5 VCC VDD 2 Non Inverting Input 3 4 Inverting Input.
The TS507 is a high performance rail-to-rail input/output amplifier with very low offset voltage.

📥 Download Datasheet

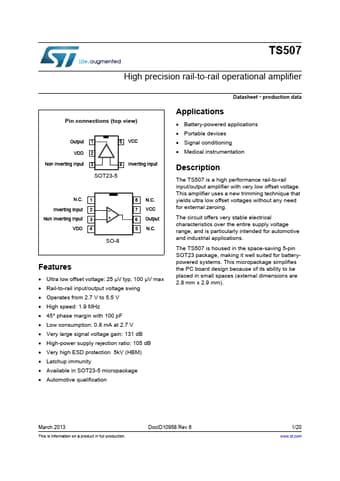

Preview of TS507 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Ultra low offset voltage: 25 µV typ, 100 µV max
* Rail-to-rail input/output voltage swing
* Operates from 2.7 V to 5.5 V
* High speed: 1.9 MHz
* 45° phase margin with 100 pF
* Low consumption: 0.8 mA at 2.7 V
* Very large signal voltage gain:

Applications

* Battery-powered applications
* Portable devices
* Signal conditioning
