TS512B

Precision dual operational amplifiers

TS512B Features

* Low input offset voltage: 500 µV max. (A version)

* Low power consumption

* Short-circuit protection

* Wide power supply range:

* Single supply: 3 to 30 V

* Dual supplies: ±1.5 to ±15 V

* Low distortion, low noise

* High gain bandwidt

TS512B General Description

The TS512x devices are high-performance dual operational amplifiers with frequency and phase compensation built into the chip. The internal phase compensation allows stable operation in voltage follower configurations in spite of its high gain bandwidth product. The circuit presents very stable elec.

TS512B Datasheet (446.59 KB)

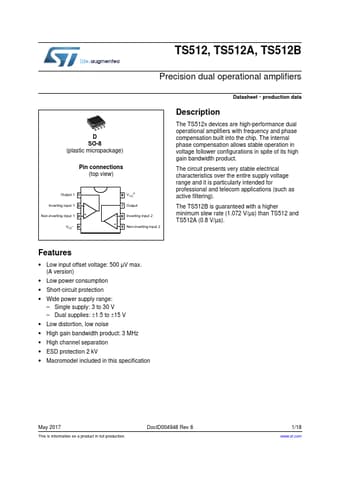

Preview of TS512B PDF

Datasheet Details

Part number:

TS512B

Manufacturer:

STMicroelectronics ↗

File Size:

446.59 KB

Description:

Precision dual operational amplifiers.
TS512, TS512A, TS512B Precision dual operational amplifiers D SO-8 (plastic micropackage) Pin connections (top view) 2XWSXW ,QYHUWLQJLQSXW .
