TS5204

80mA Low Noise LDO Voltage Regulator

TS5204 Features

* Ultra Low Noise Output

* Output Current up to 80mA

* Low Dropout Voltage

* Low Power Consumption

* Internal Current Limit

* Thermal Shutdown Protection Ordering Information Part No. Package Packing TS5204CXxx RF SOT-23 3Kpcs / 7” Reel TS5204CYxx RM SOT-89 1Kpcs / 7

TS5204 General Description

The TS5204 series is an efficient linear voltage regulator with ultra low noise output, very low dropout voltage (typically 20mV at light loads and 300mV at 80mA), and very low power consumption (500uA at 50mA), providing high output current even when the application requires very low dropout voltag.

TS5204 Datasheet (174.89 KB)

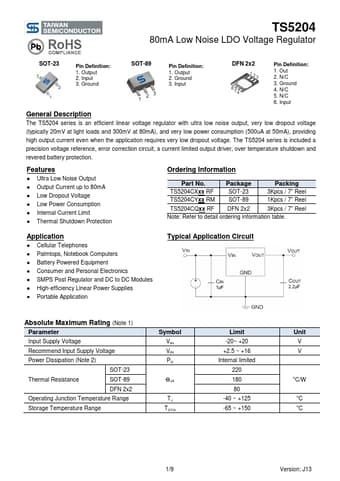

Preview of TS5204 PDF

Datasheet Details

Part number:

TS5204

Manufacturer:

Taiwan Semiconductor

File Size:

174.89 KB

Description:

80ma low noise ldo voltage regulator.
TS5204 80mA Low Noise LDO Voltage Regulator SOT-23 Pin Definition: 1. Output 2. Input 3. Ground SOT-89 Pin Definition: 1. Output 2. Ground 3. Inpu.
