TS5215

300mA Low Noise LDO Voltage Regulator

TS5215 Features

* Ultra low noise output. Low dropout voltage Low power consumption “Zero” off-mode current Logic controlled electronic enable Internal current limit and Thermal shutdown protection Ordering Information Part No. TS5215CSxx TS5215CY5xx TS5215CX5xx Operating Temp. -40 ~ +125 C o Package SOP-8 SOT-89-

TS5215 General Description

The TS5215 series is an efficient linear voltage regulator with ultra low noise output, very low dropout voltage (typically 17mV at light loads and 350mV at 300mA), and very low power consumption (125uA at 100uA), providing high output current even when the application requires very low dropout volt.

TS5215 Datasheet (198.24 KB)

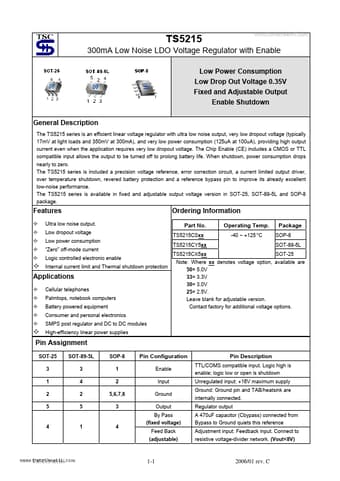

Preview of TS5215 PDF

Datasheet Details

Part number:

TS5215

Manufacturer:

Taiwan Semiconductor Company

File Size:

198.24 KB

Description:

300ma low noise ldo voltage regulator.
TS5215 www.DataSheet4U.com 300mA Low Noise LDO Voltage Regulator with Enable Low Power Consumption Low Drop Out Voltage 0.35V Fixed and Adjustable O.
