TS5214, 300mA Low Noise LDO Voltage Regulator

300mA Low Noise LDO Voltage Regulator SOT-23 Pin Definition: 1.Output 2.Input 3.Ground www.DataSheet4U.com TS5214 SOT-89 SOT-223 Pin Definitio.
TS5214 is an efficient linear voltage regulator with ultra low noise output, very low dropout voltage (typically 20mV at light loads and 350mV at 300m.

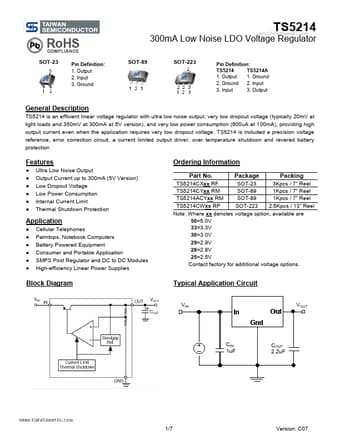

datasheet Preview Page 1 from Datasheet4u.com

TS5214_TaiwanSemiconductorCompany.pdf

TS5214 Datasheet Preview — Preview of TS5214 PDF

Datasheet Details

Part number:

TS5214

Manufacturer:

Taiwan Semiconductor Company

File Size:

338.96 KB

Description:

300mA Low Noise LDO Voltage Regulator

Features

* Ultra Low Noise Output Output Current up to 300mA (5V Version) Low Dropout Voltage Low Power Consumption Internal Current Limit Thermal Shutdown Protection Ordering Information Part No. Package Packing TS5214CXxx RF SOT-23 3Kpcs / 7” Reel TS5214CYxx RM SOT-89 1Kp

Applications

* Dual Supply Operation When used in dual supply systems where the regulator load is returned to a negative supply, the output voltage must be diode clamped to ground. 3/7 Version: C07 300mA Low Noise LDO Voltage Regulator www. DataSheet4U. com TS5214 SOT-23 Mechanical Drawing DIM A A1 B C D E F
