SMC3240DM Datasheet - Semtron

Dual N-Channel MOSFET

SMC3240DM Features

* VDS=30V, ID=11A RDS(ON)=9mΩ(Typ.)@VGS=10V RDS(ON)=11mΩ(Typ.)@VGS=4.5V

* 100% EAS Guaranteed

* Improved dv/dt capability

* High power and current handling capability

* APPLICATIONS

* Power Management

* DC/DC Power System

* Load Switch D2 D2 D1 D1 D1 D2 G1 G2 G2 S2 G1 S1

SMC3240DM General Description

SMC3240DM is the dual N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance.This device is ideal for load switch applications. *PART NUMBER INFORMATION SMC 3240D M - TR G.

SMC3240DM Datasheet (282.75 KB)

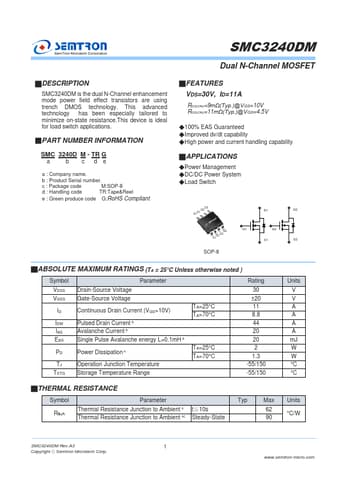

SMC3240DM Datasheet Preview — Preview of SMC3240DM PDF

Datasheet Details

Part number:

SMC3240DM

Manufacturer:

Semtron

File Size:

282.75 KB

Description:

Dual n-channel mosfet.
