SMC3241H

Single P-Channel MOSFET

SMC3241H Features

* VDS = -30V, ID = -38A RDS(ON)=16mΩ(Typ.)@VGS=-10V RDS(ON)=24.5mΩ(Typ.)@VGS=-4.5V

* 100% EAS Guarantee

* High power and current handling capability

* APPLICATIONS

* Power Management

* DC/DC Converters D G S TO-252 D G S

* ABSOLUTE MAXIMUM RATINGS (TA = 25°C Unless otherwise noted

SMC3241H General Description

The SMC3241 uses trench MOSFET technology Provides extremely low RDS(ON), Low resistance package and excellent fast switching performance. This device is ideal for efficient and fast switching applications. *PART NUMBER INFORMATION SMC 3241 H - TR G a b c de a : Company name. b : Product Seri.

SMC3241H Datasheet (393.33 KB)

Rating: 1 ★ (2 votes)

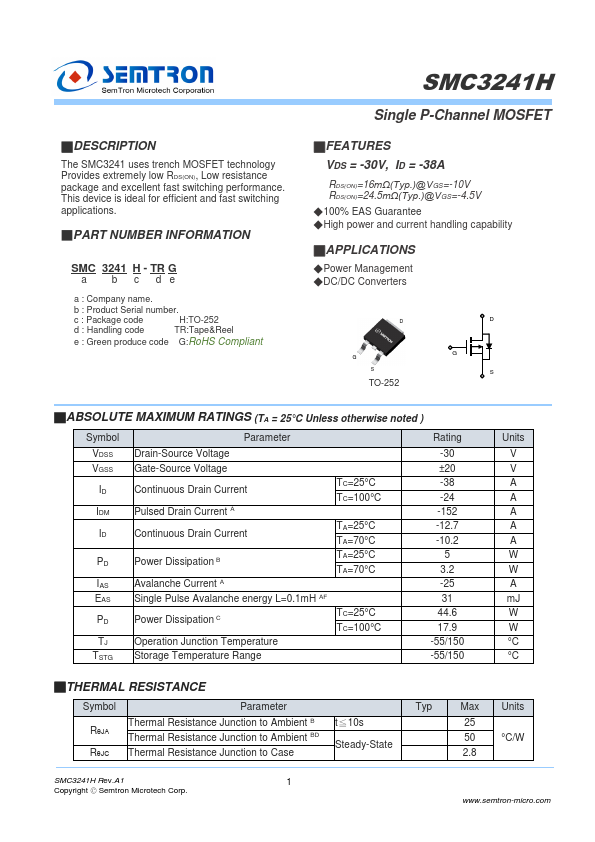

Preview of SMC3241H PDF

Datasheet Details

Part number:

SMC3241H

Manufacturer:

Semtron

File Size:

393.33 KB

Description:

Single p-channel mosfet.

📁 Related Datasheet

SMC3241M Single P-Channel MOSFET (Semtron)

SMC3241PA Single P-Channel MOSFET (Semtron)

SMC3240DM Dual N-Channel MOSFET (Semtron)

SMC3240H Single N-Channel MOSFET (Semtron)

SMC32 SURFACE MOUNT PLASTIC SILICON DIODES (FCI)

SMC3206H Single N-Channel MOSFET (Semtron)

SMC3223S Single P-Channel MOSFET (Semtron)

SMC3232S Single N-Channel MOSFET (Semtron)

SMC3251S Single P-Channel MOSFET (Semtron)

SMC3251SN Single P-Channel MOSFET (Semtron)

TAGS

SMC3241H Single P-Channel MOSFET Semtron

Image Gallery

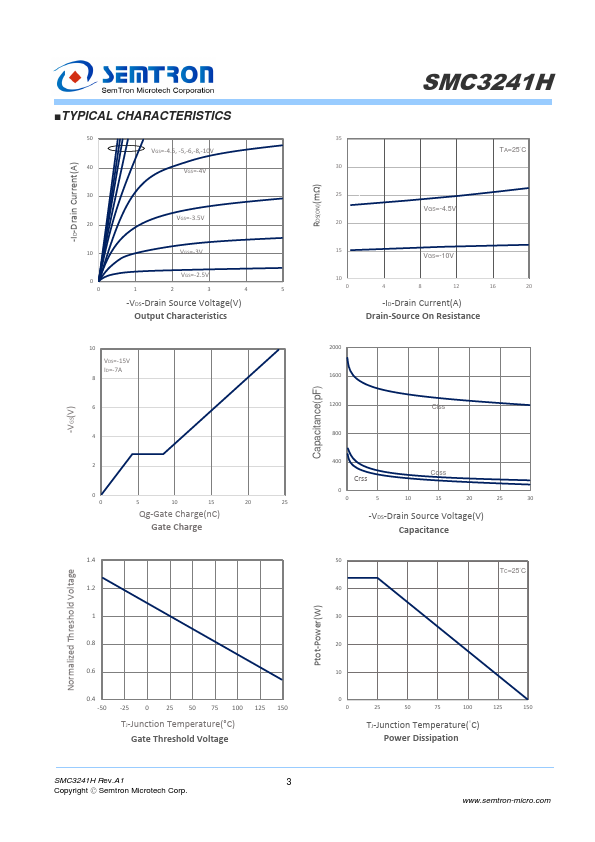

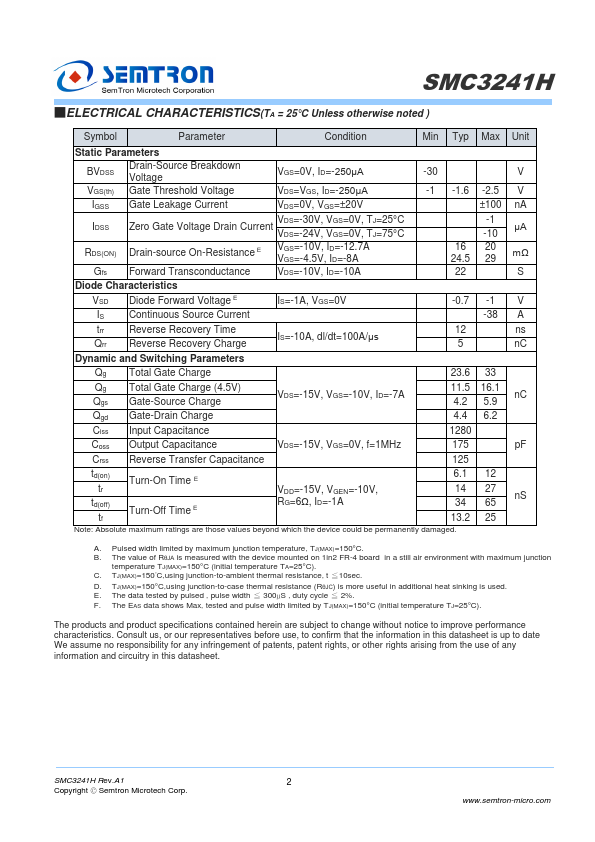

SMC3241H Datasheet Preview Page 2 SMC3241H Datasheet Preview Page 3
