Single P-Channel MOSFET

SMC3223S Features

* VDS = -30V, ID = -4.5A RDS(ON)=43mΩ(Typ.)@VGS=-10V RDS(ON)=56mΩ(Typ.)@VGS=-4.5V

* Fast switch

* APPLICATIONS

* Portable Equipment

* Power Management

* Load Switch D D S G SOT-23L G S

* ABSOLUTE MAXIMUM RATINGS (TA = 25°C Unless otherwise noted ) Symbol VDSS VGSS ID IDM PD TJ

SMC3223S General Description

SMC3223 is the P-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package. *PART NUMBER I.

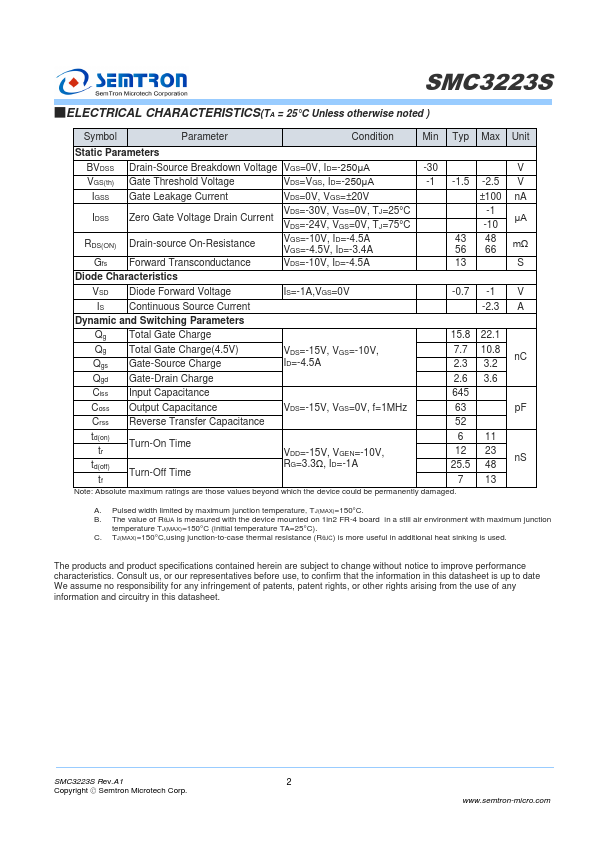

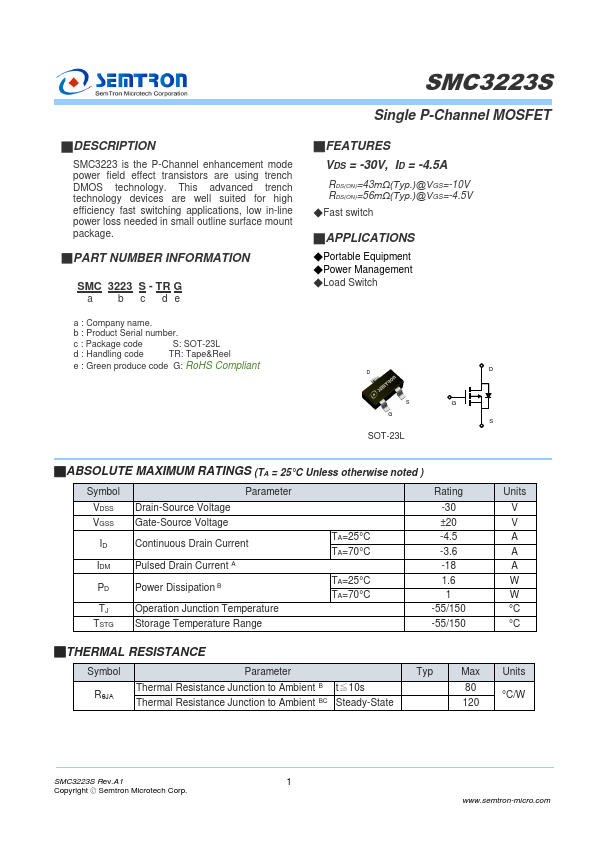

SMC3223S Datasheet (360.44 KB)

SMC3223S Datasheet Preview — Preview of SMC3223S PDF

Datasheet Details

Part number:

SMC3223S

Manufacturer:

Semtron

File Size:

360.44 KB

Description:

Single p-channel mosfet.
