SMC3206H - Single N-Channel MOSFET

Semtron

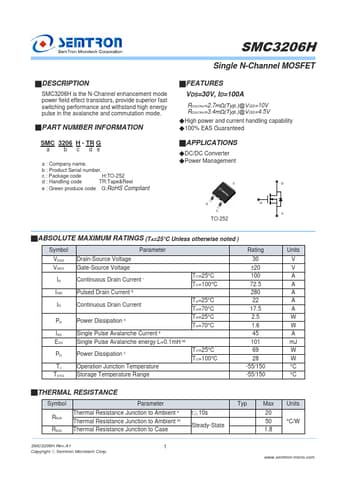

SMC3206H Datasheet Preview — Preview of SMC3206H PDF

Datasheet Details

Part number	SMC3206H
Manufacturer	Semtron
File Size	308.21 KB
Description	Single N-Channel MOSFET
Datasheet	SMC3206H-Semtron.pdf

SMC3206H Product details

Description

SMC3206H is the N-Channel enhancement mode power field effect transistors, provide superior fast switching performance and withstand high energy pulse in the avalanche and commutation mode. PART NUMBER INFORMATION SMC 3206 H - TR G a b c de a : Company name.b : Product Serial number.c : Package code H:TO-252 d : Handling code TR:Tape&Reel e : Green produce code G:RoHS Compliant

Features

VDS=30V, ID=100A RDS(ON)=2.7mΩ(Typ. )@VGS=10V RDS(ON)=3.4mΩ(Typ. )@VGS=4.5V.
High power and current handling capability.
100% EAS Guaranteed.
