SMC3232S Single N-Channel MOSFET

SMC3232 is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss are needed in small outline surface mount package. *PART NUMB.

SMC3232S Features

* VDS = 30V, ID = 6A RDS(ON)=22mΩ(Typ.)@VGS=10V RDS(ON)=32mΩ(Typ.)@VGS=4.5V

* Fast switch

* APPLICATIONS

* Hend-Held Instruments

* Load Switch

* LED Applications a : Company name. b : Product Serial number. c : Package code S: SOT-23L d : Handling code TR: Tape&Reel e : Green pro

SMC3232S Datasheet (333.65 KB)

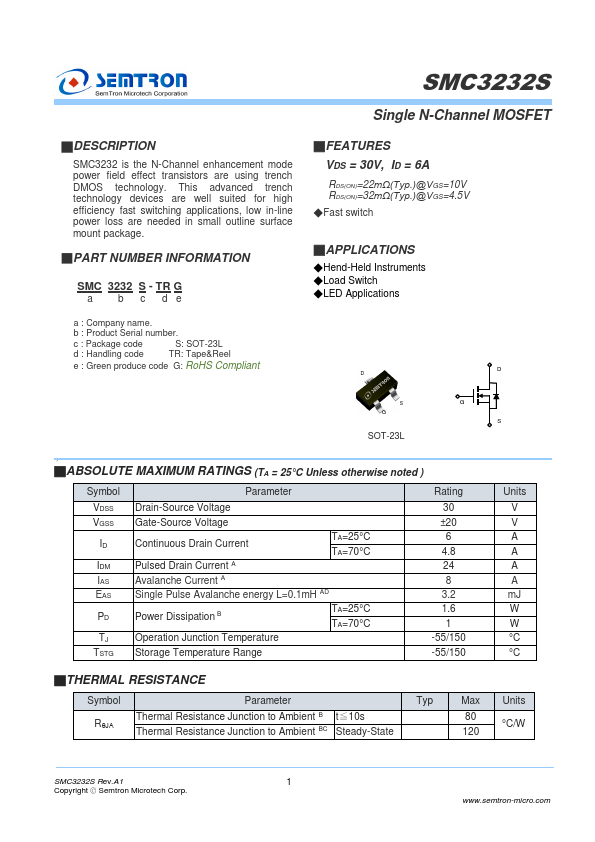

SMC3232S Datasheet Preview — Preview of SMC3232S PDF

Datasheet Details

Part number:

SMC3232S

Manufacturer:

Semtron

File Size:

333.65 KB

Description:

Single n-channel mosfet.
