SMC3241M - Single P-Channel MOSFET

Semtron

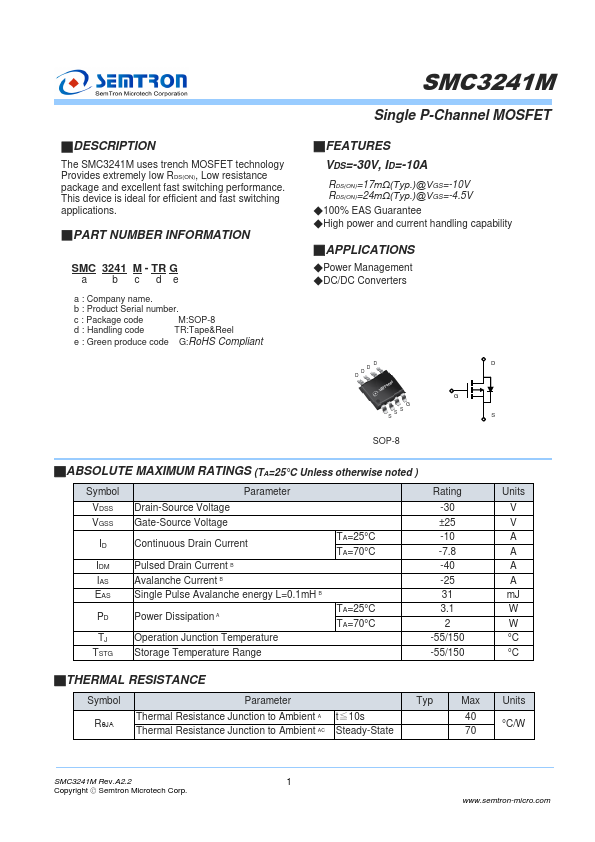

SMC3241M Datasheet Preview — Preview of SMC3241M PDF

Datasheet Details

Part number	SMC3241M
Manufacturer	Semtron
File Size	302.97 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3241M-Semtron.pdf

SMC3241M Product details

Description

The SMC3241M uses trench MOSFET technology Provides extremely low RDS(ON), Low resistance package and excellent fast switching performance. PART NUMBER INFORMATION SMC 3241 M - TR G a b c de a : Company name.b : Product Serial number.c : Package code M:SOP-8 d : Handling code TR:Tape&Reel e : Green produce code G:RoHS Compliant

Features

VDS=-30V, ID=-10A RDS(ON)=17mΩ(Typ. )@VGS=-10V RDS(ON)=24mΩ(Typ. )@VGS=-4.5V.
100% EAS Guarantee.
High power and current handling capability.
